Getting a dedicated gas line for your new standby generator in Helotes
Power outages in Helotes can hit hard during storm season. A standby generator keeps your lights on and your family safe. But that generator needs a dedicated gas line sized and installed to exact specifications. Without it, your system may fail when you need it most. Alpha Plumbing delivers professional gas line installation that meets San Antonio codes, CPS Energy requirements, and your generator’s BTU demands. CPS Energy meter capacity and upgrades.
Why your generator needs a dedicated gas line
Standby generators burn natural gas or propane at high volume. A shared line with your home’s existing appliances cannot handle that load. Undersized piping causes pressure drops that make the generator sputter or shut down. That means no backup power when the grid fails. A dedicated line runs directly from the meter or propane tank to the generator with proper pipe diameter and pressure regulation. This setup keeps fuel flow steady and the system reliable.
Diagram showing dedicated gas line routing from meter to generator with pressure regulator and shut-off valve.
Our installation process from CPS Energy coordination to pressure testing
Every gas line install starts with a site survey. We check your meter’s BTU capacity and confirm whether CPS Energy needs to upgrade it. Next we pull the proper permits through the City of San Antonio Development Services Department. This includes a mechanical permit and a gas line permit. Once approved we trench to the required depth—usually 18 inches in residential zones. We install black iron pipe or CSST based on the run length and local soil conditions. After connecting to the generator we pressure test the line with a manometer to verify no leaks exist. Finally the city inspector performs a final check before you can use the system. City of San Antonio Development Services.
Sizing your gas line BTU requirements for 22kW 24kW and larger generators
Generator size dictates pipe diameter. A 22kW unit typically needs about 200 000 BTU/hr. A 24kW needs closer to 220 000 BTU/hr. Larger 26kW+ units can exceed 250 000 BTU/hr. Pipe length also matters. A short 10-foot run may use 3/4-inch pipe. A 50-foot run to the same generator may require 1-inch to avoid pressure loss. We calculate exact BTU demand and friction loss using local gas codes to ensure proper flow. This prevents starving the engine during a long outage.
- Determine generator BTU/hr rating
Check the manufacturer’s spec sheet for BTU input at full load.
- Measure pipe run length
Measure the total distance from meter to generator including bends.
- Select pipe diameter
Use gas code tables to match BTU load and length to correct pipe size.
- Verify pressure capacity
Confirm your meter can supply the required inlet pressure.
- Pull permit and test
Install per code and pressure test before final inspection.. Read more about Everything you need to know before running a gas line for a fire pit in The Dominion.
San Antonio gas codes and permitting requirements
Texas State Board of Plumbing Examiners (TSBPE) rules require a licensed Master Plumber to install gas lines. In San Antonio the Development Services Department enforces the City of San Antonio Plumbing Code which follows the International Fuel Gas Code with local amendments. Gas lines must be pressure tested at 1.5 times the working pressure and hold steady for 15 minutes. Trenching must maintain 18-inch minimum cover in residential zones unless passing under driveways where 24 inches is required. All buried lines need yellow polyethylene protection or corrosion-resistant coating. Permits typically cost $75 to $150 and take 2-3 business days to issue. Emergency San Antonio Plumbers Who Actually Answer the Phone at Night.
Natural gas vs propane hookups for San Antonio homes
Most Helotes homes use natural gas from CPS Energy. These lines run at low pressure around 7 inches water column. Propane systems operate at higher pressure and need a step-down regulator at the generator. Propane is common in rural parts of Bexar County where natural gas mains do not reach. Propane tanks require a different trench path and additional safety clearances from structures. Both fuel types need the same code-compliant installation and pressure testing. We help you decide which fuel fits your location and budget.

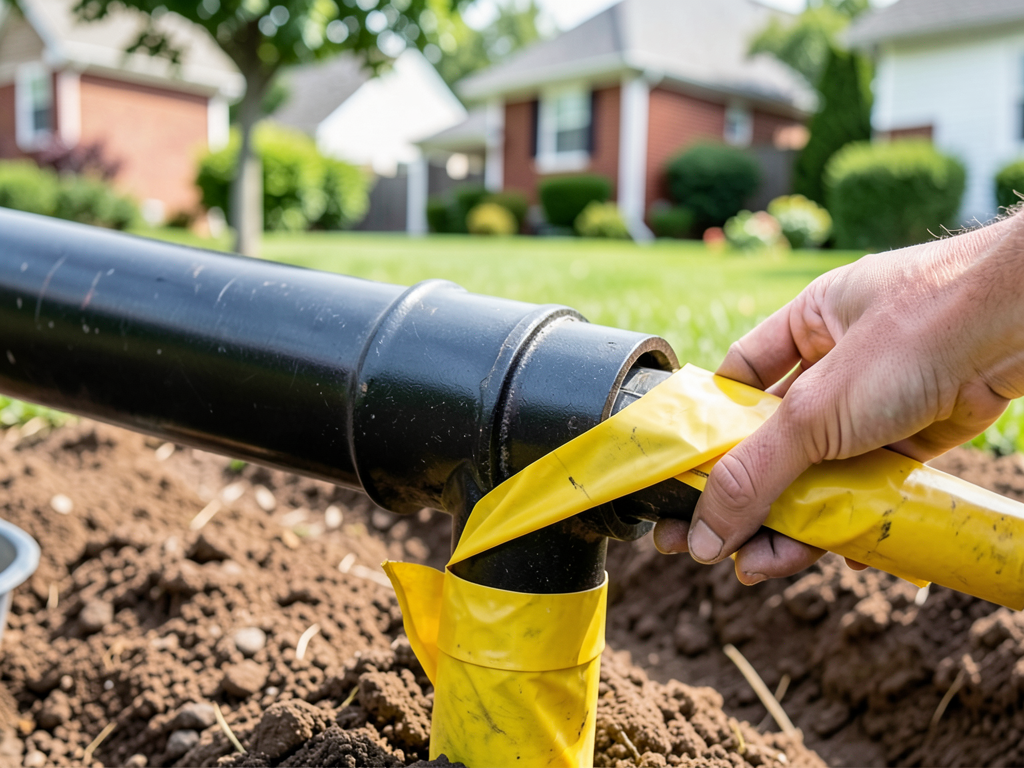

Close-up of black iron gas line connection with yellow protective wrap before burial.
Frequently asked questions about generator gas lines
How long does a gas line install take?
Most residential installs finish in one day after permits are issued. Trenching and pipe installation take 4-6 hours. Pressure testing and inspection add another 2-3 hours.
Can I use my existing gas line for the generator?
No. Shared lines cannot supply the high BTU demand. A dedicated line ensures safe and reliable operation.
What happens if my gas meter is too small?
CPS Energy can upgrade your meter to handle the additional load. We coordinate that step as part of the install.
Do I need a permit for a gas line?
Yes. San Antonio requires a mechanical permit and gas line permit. Work without a permit can result in fines and failed inspection.
How deep is the trench for a gas line?
Residential gas lines must be buried at least 18 inches deep. Driveways and high-traffic areas need 24 inches.
What if my property has limestone or rocky soil?
Rocky terrain in northern Helotes can slow trenching. We use specialized equipment to cut through limestone and maintain required cover depth.
Is a pressure test really necessary?
Yes. Pressure testing verifies the line holds without leaks. It is required by code and by the city inspector before final approval.
Technician using a manometer to pressure test a newly installed gas line before inspection.
Call (210) 374-7773 today to schedule your inspection
Don’t wait until the next storm leaves you in the dark. A properly sized and installed gas line is the backbone of your standby generator system. We handle everything from permit pull to final inspection so you can focus on keeping your family safe. Call (210) 374-7773 now to schedule your site survey. Our Master Plumbers are ready to deliver reliable backup power when you need it most.
